Standard Products | Acetate Components

We have standard materials and short end tips. No cost for molds. Shape of holes can be adjusted depending on your temples.

EV Standard Shape Chart

*click to enlarge

*click to enlarge

	Original Length (mm)	Possibility of Length Adjustment	Maximum Length	Minimum Hole Diameter (+/-0.05mm)	Maximum Hole Diameter (+/-0.05mm)	Maximum Size for Square Angle (mm)
EVS-101	72	✗	-	1.0	2.0	1.2×2.6

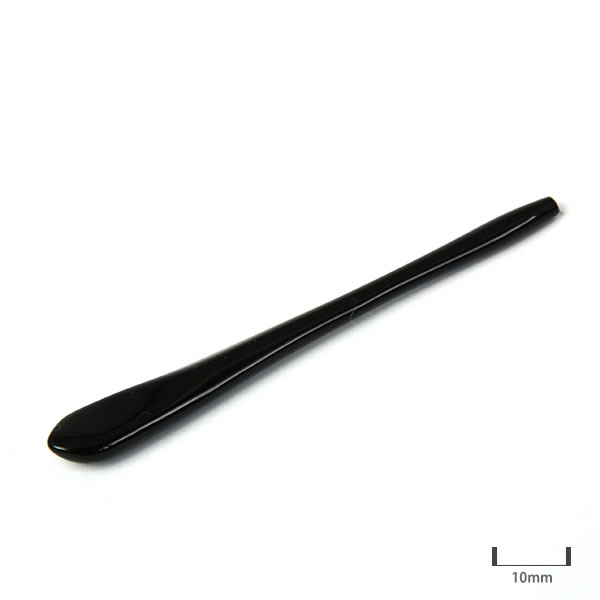

EVS-102	72	✗	-		1.5	1.2×1.6

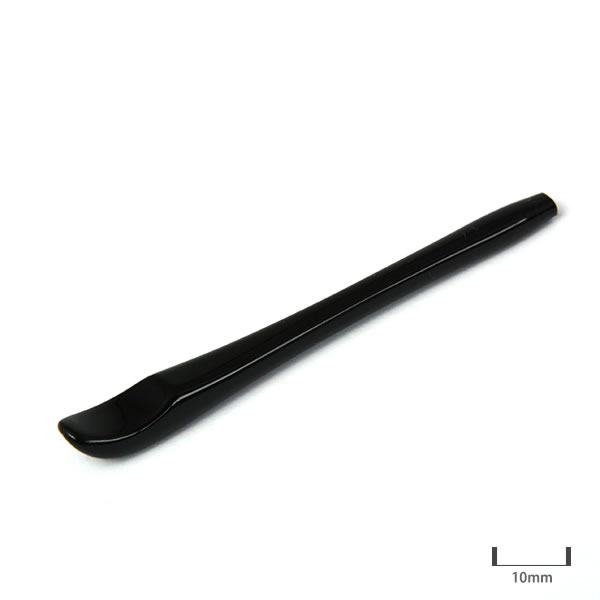

EVS-103	70	✗	-		1.6	1.2×2.6
EVS-104	70	✗	-		1.6	1.2×2.0

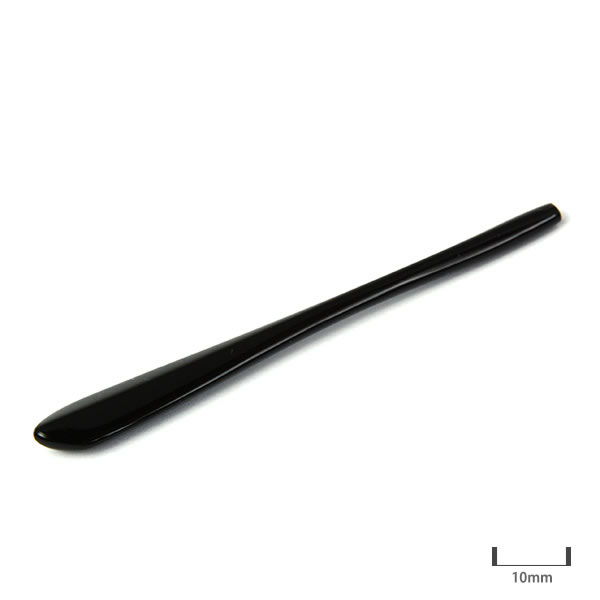

EVS-105	72	✗	-		1.5	1.2×1.9

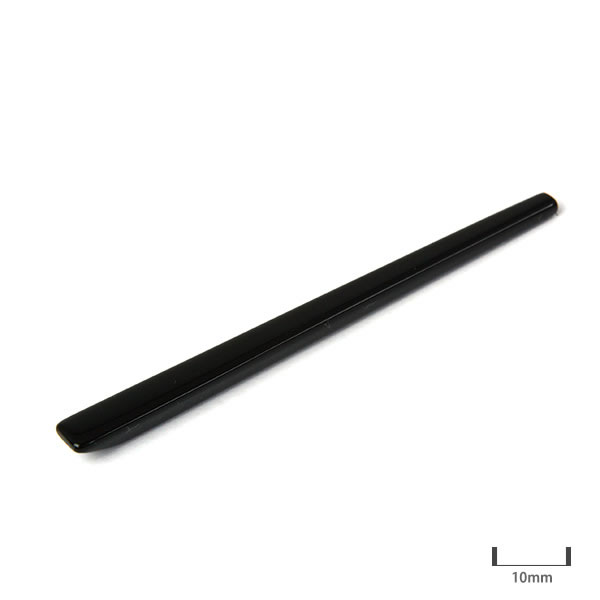

EVS-106	70	✓	75		1.5	1.2×2.1
EVS-107	70	✓	75		1.6	1.2×2.3

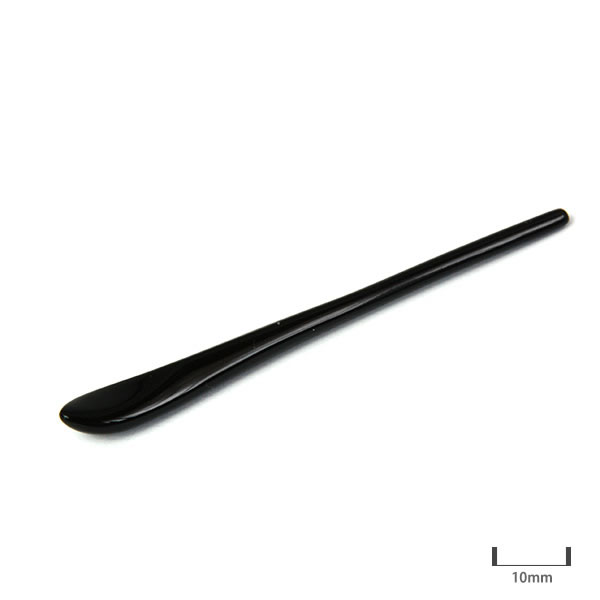

EVS-201	70	✓	75		1.5	1.2×1.5

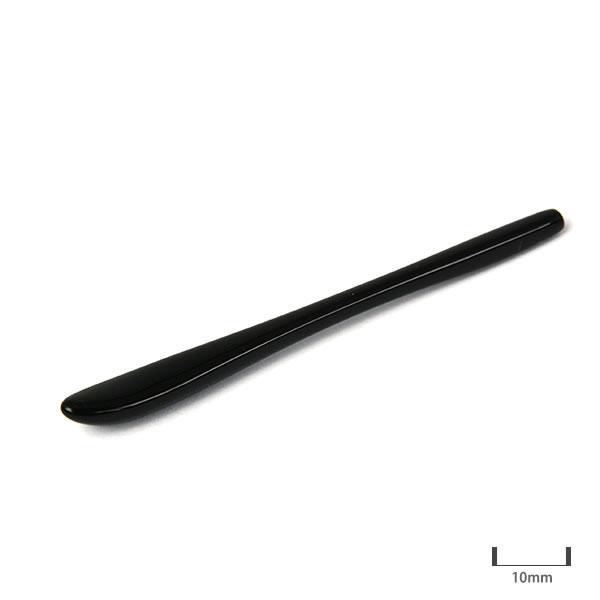

EVS-202	70	✗	-		1.6	1.2×1.9

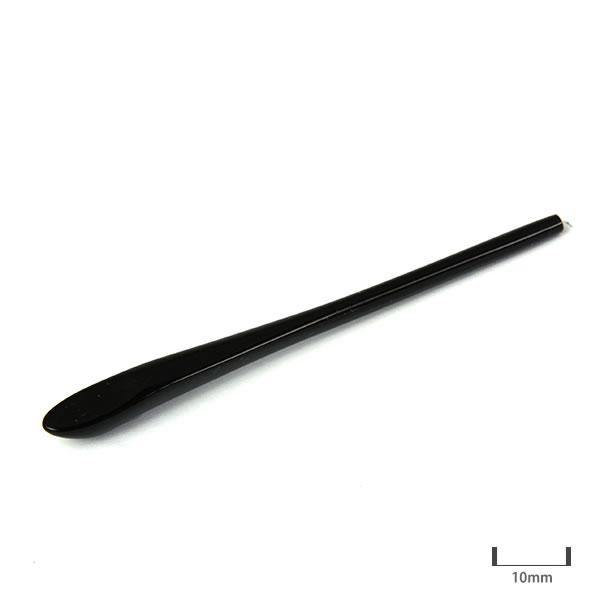

EVS-203	70	✗	-		1.5	1.2×1.2

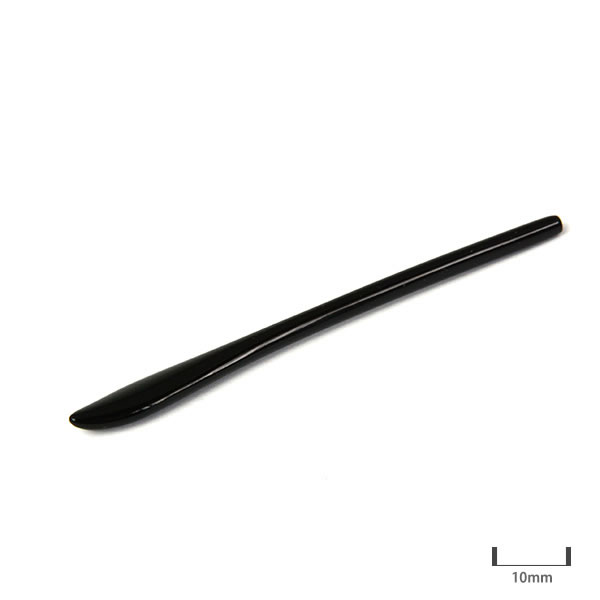

EVS-204	68	✓	70		1.6	1.2×1.3

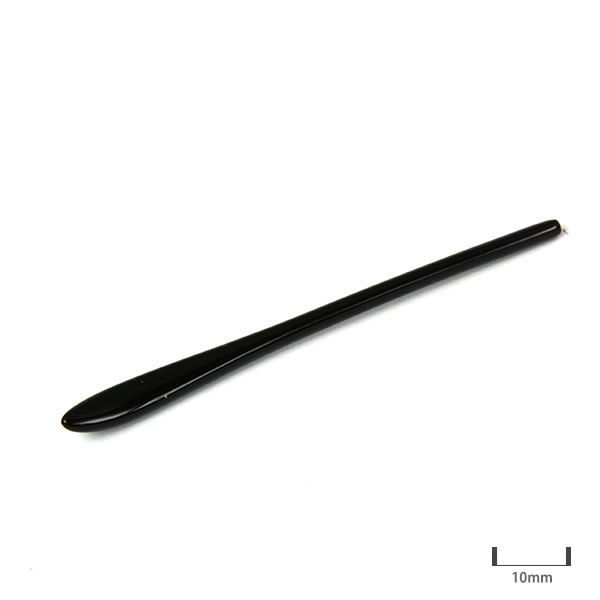

EVS-205	68	✓	72		1.5	1.2×1.4

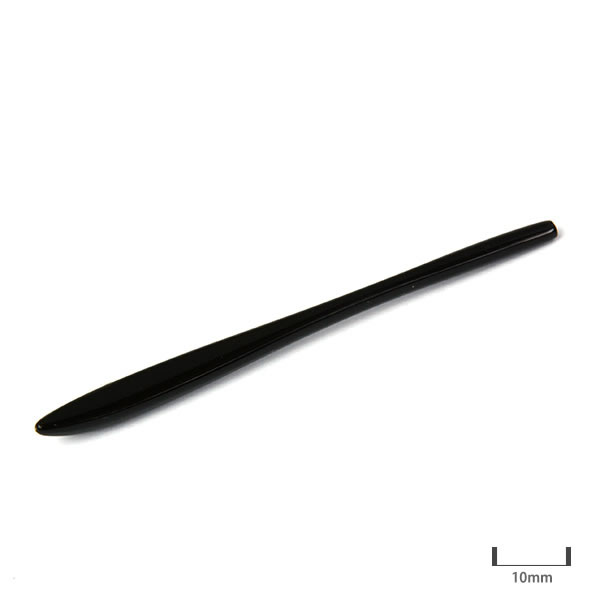

EVS-206	70	✗	-		1.5	1.2×1.4

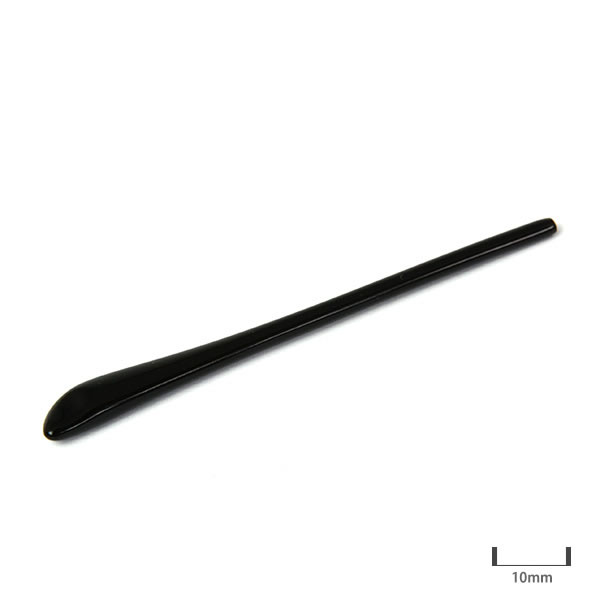

EVS-207	70	✓	75		1.4	1.2×1.6

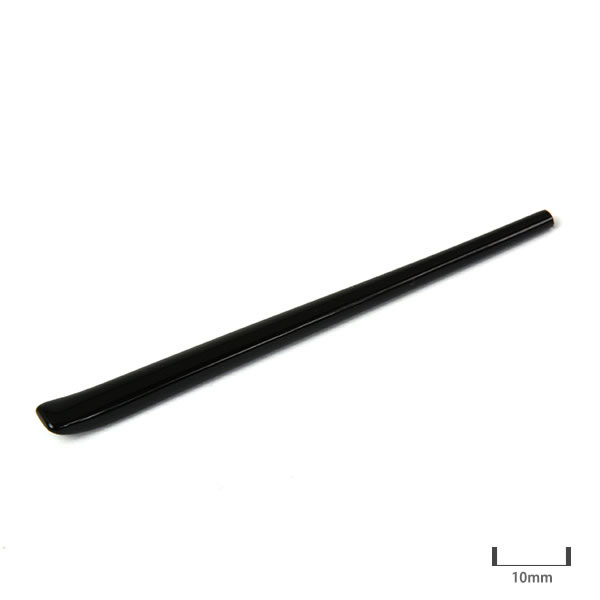

EVS-301	69	✓	75		1.5	1.2×1.4

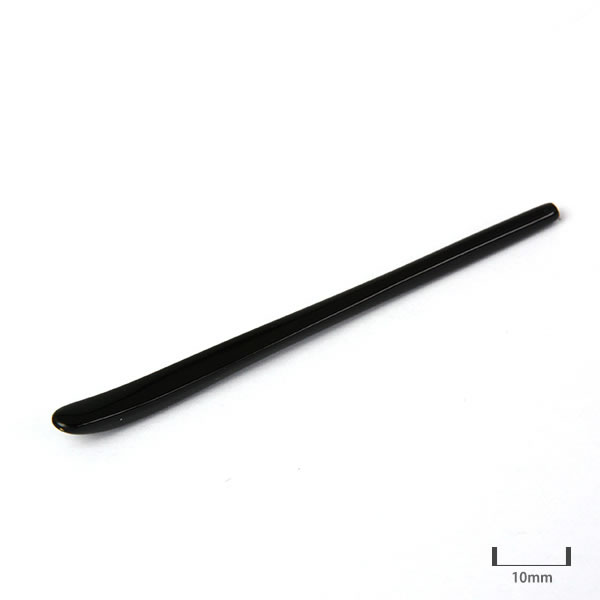

EVS-302	70	✗	-		1.4	1.2×1.7

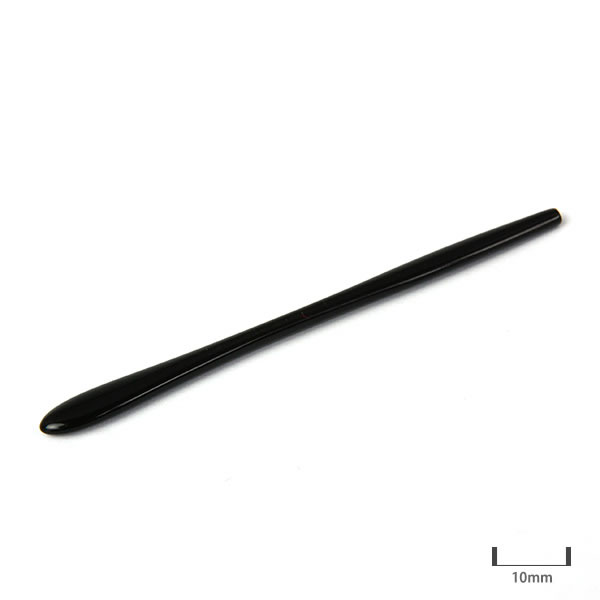

EVS-303	70	✗	-		1.5	1.2×1.4
EVS-304	68	✓	73		1.6	1.2×1.6

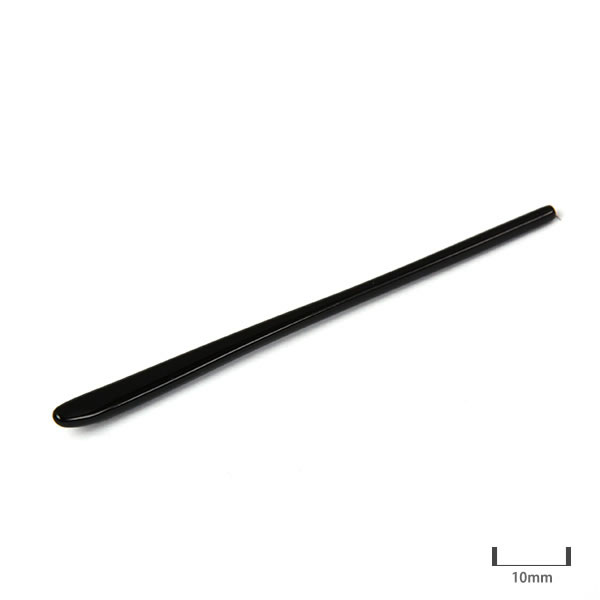

EVS-305	69	✓	74		1.4	1.2×1.0

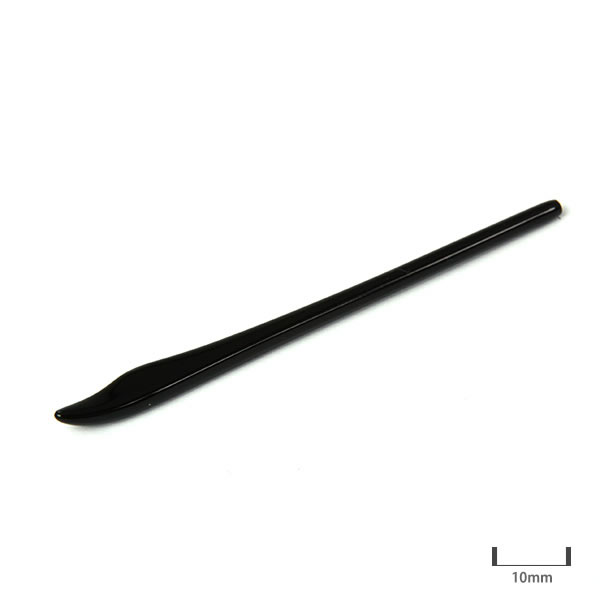

EVS-306	70	✓	75		1.5	1.2×1.5
