ART FLEXColor&Size

ART FLEX
Color sample

Thirteen (13) solid colors and 6 striped patterns are available as standard items. Also, 2 sizes (thin/thick) are available. However, striped patterns have only 1 size available.

Size Variation

Two (2) sizes are available. Special note: The diameter of the tube before shrinking (including tolerance) must be able to be inserted over the object for a proper fit. Striped patterned tube is only available in A size.

  Before shrinkage (mm) After shrinkage (mm)
Inside diameter Wall thickness Inside diameter Wall thickness
Size A 2.10±0.30 0.20 0.80 0.40±0.10
Size B 3.50±0.30 0.20 1.20 0.40±0.10

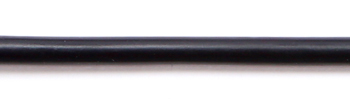

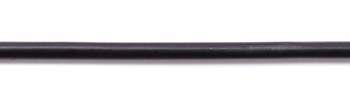

Size ASize B

Color Variation

Solid 13 colors are obtained from the keading processing. Therefore, the vividness of the color is long-lasting. For the colors of striped patterns, the base color is either white or clear.

Standard colors

H-01Clear H-01 Clear Size A H-01 Clear Size B
H-02Black H-02 Black Size A H-02 Black Size B
H-03Blue H-03 Blue Size A H-03 Blue Size B
H-04Green H-04 Green Size A H-04 Green Size B
H-05Yellow H-05 Yellow Size A H-05 Yellow Size B
H-06Orange H-06 Orange Size A H-06 Orange Size B
H-07Red H-07 Red Size A H-07 Red Size B

Eurovision special colors

E-001Smoke E-001 Smoke Size A E-001 Smoke Size B
E-002Navy E-002 Navy Size A E-002 Navy Size B
E-003Pink E-003 Pink Size A E-003 Pink Size B
E-004Moss green E-004 Moss green Size A E-004 Moss green Size B
E-005Honey E-005 Honey Size A E-005 Honey Size B
E-006Brown E-006 Brown Size A E-006 Brown Size B

Stripe

When the ART FLEX is applied to a silver temple, the base colors of white or clear appear silver.


SC-01Clear red SC-01 Clear red
SC-02Clear blue SC-02 Clear blue
SC-03Clear black SC-03 Clear black
SN-01White red SN-01 White red
SN-02White blue SN-02 White blue
SN-03White black SN-03 White black

Only A size is availbale.
